- Glass door hinge.
- For inset glass doors.
- Requires 3mm. gap top and bottom and 2.8mm. gap at the side.
- maximum glass thickness: 6mm.
- opening angle: 105 degrees.
- maximum door height: 1000mm.
- maximum door width: 500mm.
- mounted to glass plate with a clamping screw.
- no drilling in glass plate required.
- item: catch
- number: 20873
- material: black plastic
- tensile force: 0,7 - 1,1kg
| CABINET DOOR FITTINGS | |
| construction | |
| item | catch |
| material | black plastic |
| number | 20873 |
| type | ET 150 |
| CABINET DOOR FITTINGS SORT | |
| sort product | glass door hinges |

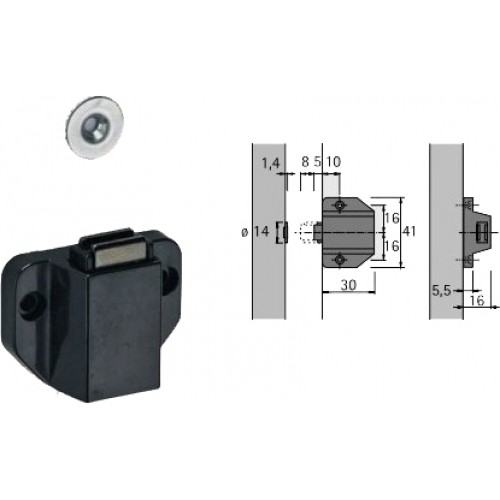

MAGNETIC CATCH BLACK D7
- Product Code: 372035
- Availability: In Stock
-
€2.54
Tags: Magnetic catches, Glass door hinges
